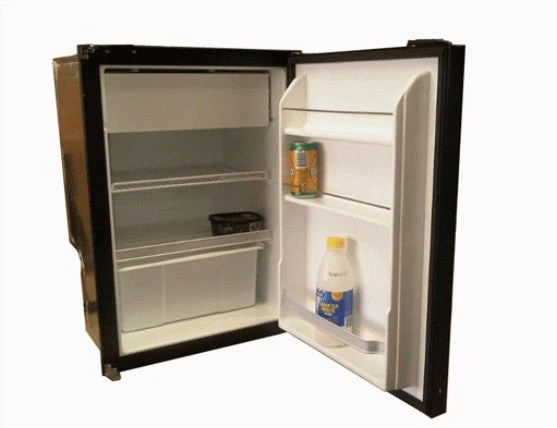

NovaKool R3800DC – 100 Litre 12volt Compressor Fridge Freezer

Specification:

Model No. R3800 DC
100 liters (3.8 cu.ft. ) total volume.
87.5 litres of fridge space and a 12.5 litre freezer box at the top

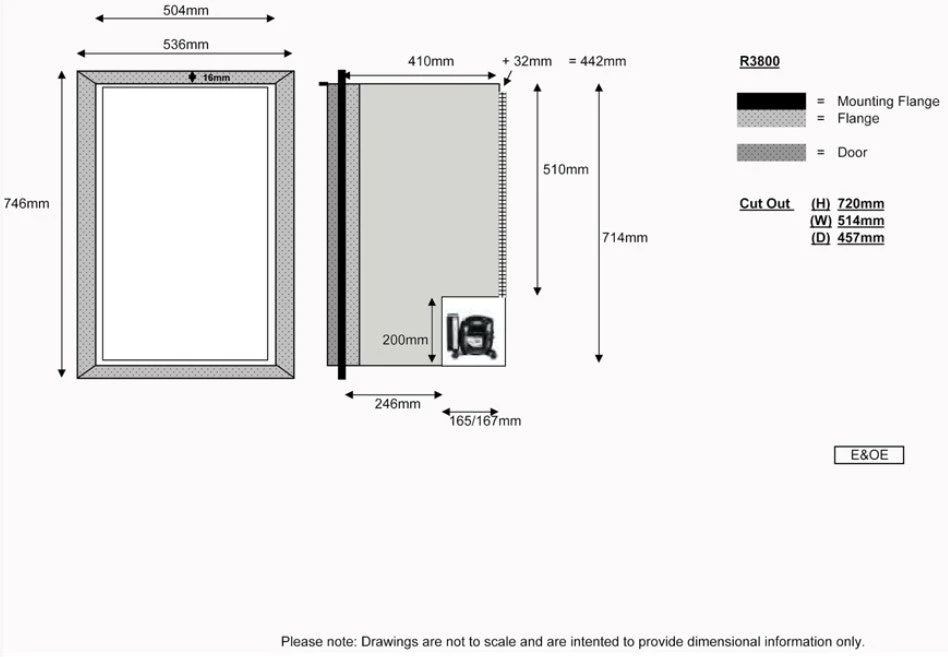

Cut Out Dimensions
720 mm Height
515 mm Width
457 mm Depth (measured from the back face of the mounting flange)

Overall dimensions (Including flange)
745 mm Height
536 mm Width
536 mm Depth (including door and latch handle)

• Interior LED Light is Included on this model
• 12V DC compressor cooling fan is Included on this model

Standard Options

• Multi-Voltage module for AC/DC operation – switches automatically between AC and DC power sources 12 or 24 VDC and 100-240 VAC 50/60HZ
• White or Stainless Steel Door Panel (black is standard)
• Right or left hand door swing (right is standard)

Feature:

Total Internal Volume is 100 liters:
87.5 litres of fridge space plus a 12.5 litre freezer box at the top

Cut Out Dimensions:
720 mm (H) X 515 mm (W) x 457 mm (D)

Nova Kool Refrigerators and Freezers are equipped with a highly efficient variable speed Danfoss BD series compressor that is designed for use in boats, caravans and RV’s with 12 or 24 Volt DC power.

Power draw is less than 30 watts (2.1amps @ 12 Volts DC) when running: average power use over 24 hours will vary depending on ambient temp. how often the door is opened etc.

Features:

• Positive latch system
• Strongest mounting flanges in the industry
• Stainless fasteners & hinges used throughout
• LED Interior Light Included
• 12V DC compressor cooling fan is Included on this model
• Storage for tall bottles
• Reversible door swing
• Replaceable door panels for a custom finish to your interior
• Backed with Nova*Kool’s Easy 2 Year Warranty Program on all components
• Environmentally sound 134a refrigerant
• CFC free urethane foam in cabinet and doors
• Magnetic door gaskets for positive seal
• Maintenance friendly & efficient static condenser
• Low battery protection to help prevent full discharge of batteries

Multi-Voltage Options:
DC only: 12 & 24vdc is standard, or optional 10-45 vdc for special applications (please contact us!)
AC/DC: 12 & 24 VDC and 100-240 VAC 50/60HZ is an option details at the bottom of this page.
