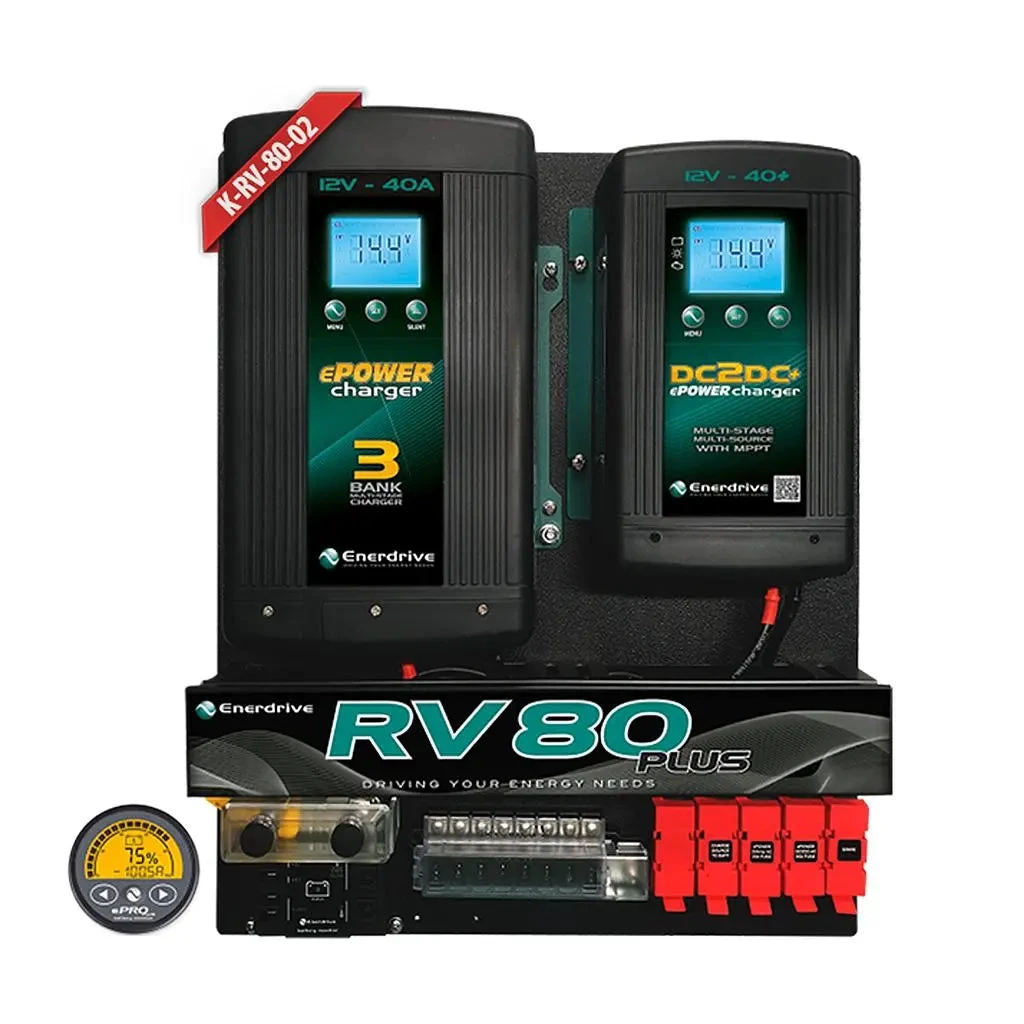

RV 80 Plus Installation Kit K-RV-80-02

Original price was: $380.00.Current price is: $98.99.

SKU: ZXZLC 7901633413342 Category: Portable Refrigeration and Parts Tags: 12 volt, 12 volt Misc, 240 Electrical, 240 Volt Charging, Battery, Battery Monitors, Cables Adapters and Power Supplies, Caravan Stuff, Controllers, DC DC Accessories, DC DC Charging, Fuse, Inverter, Invertors, Lithium, Solar Controllers, Std Shipping

Uncompromising quality, every time.
Multiple payment methods, 100% payment security
Quality at its Finest
Safe Transactions, Always

Description
Reviews (0)

Specification:

RV 80 BOARD with MONITOR

K-RV-80-02

Ouput Rating
Output Voltage	12V Nominal (8.0V min)
Output Current (Maximum)	40A – 50A
Output power	775W
Charger DC Output (CH1):
Selectable Battery Type	Gel, AGM, Flooded, Lithium, Program
Charger Voltage Range	13.8V – 15.5V
Float Voltage Range	13.0V – 13.8V
Charger Current (User Selectable)	5/10/15/20/25/30/35/40/45/50A (default 40A)
Equalize Voltage (flooded Battery)	15.5V
Equalize Charging Current	10% of Bulk Current Setting
Charging Control	2 stage / 3 stage selectable (Default 3 stage)
DC Output Bank	Single
Current draw from CH1 when in use	= < 50mA
Battery Temperature Setting	Low/ Normal/ High (Battery Temperature Sensor Standard)
Efficiency	95%
Input Rating (CH2 – MPPT Solar)
Input Voltage	14.5 – 45VOC
Maximum Input	≤23 input, 500W (600W allowable) ≥37.5-45V input, 750W (800W allowable)
Input Rating (CH3 – Start/Alternator)
Input Voltage	10.5 – 16VDC / 21 – 32DC
Dimensions
Height x Width x Depth	242mm x 172mm x 74mm
Unit Weight	1.85 Kg
Shipping Weight	2.17 Kg

EN31240-

Model	EN31220	EN31240	EN31260	EN32430
CHARGER OUTPUT
Output Current (Maximum)	20A	40A	60A	30A
OUTPUT VOLTAGE RANGE
Charge	14.2 – 15.5 V			28.4 – 31.0V
Float	13.4 – 13.8 V			26.8 – 27.6V
– Equalize	16.0 V			32.0V
Charging Control	Four stages (Bulk/Absorption/Float/Maintenance)
	Two stages (Bulk/Absorption)
	Constant Power Supply (Program setting)
	Priority Battery Bank Charging
DC Output Bank	Three (1 fully independent, 2 common with diode isolation)
Selectable Battery Type	Gel, AGM, Flooded, Lithium, Program
Standby Current	< 2 mA
CHARGER INPUT
AC Input Voltage (Nominal)	90 to 265 VAC
AC Input Operating Range	207-265 Vac (2.0 A Max)90-125 Vac (3.8 A Max)	207-265 Vac (3.8 A Max)90 – 125 Vac (7.7 A Max)	207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max)	207-265 Vac (5.9 A Max)90-125 Vac (11.3 A Max)
AC Input Frequency Range	47 – 63 Hz
Power Consumption	350W (Full Load)	700W (Full Load)	1050W (Full Load)	1050W (Full Load)
Power Factor Correction	Yes
Charger Efficiency	> 82%
PROTECTION AND FEATURES
Reverse Polarity	Yes, (with user replaceable fuse/s)
Over Charge	Yes, unit shutdown
Over Temperature	Yes, unit de-rated and shutdown
Output Short Circuit	Yes, (with user replaceable fuse/s)
Cooling	Forced air ventilation (thermo controlled fan)
Temperature Setting	Hot, Normal, Cold (no sensor connected)
Battery Temp Sensor Port	RJ12 (standard battery temp. sensor supplied)
DISPLAY
LCD Display (with back light)	Charging status, Battery Voltage, Output Current & Fault Codes.
AC INPUT AND DC OUTPUT CONNECTION
AC Input Connection	IEC with Supplied 1.2M Power Lead
DC Output Connection	Heavy Duty Terminal (3 banks) – Pan Heads 6mm Thread
DC Output Ground	Single Heavy Duty Common Ground Stud
ENVIRONMENTAL AND OPERATING TEMPERATURE
Storage Range	-40° to 70° C
Operating Range	-20° to 60° C
Humidity	5-95%, relative humidity non-condensing
Ingress Protection	IP32 (Basic drip proof in vertical orientation)
Base Unit Weight and Dimensions
Weight: (kg)	2.4	2.6	4.0	4.0
Dimension: (mm) L x W x H	295 x 206 x 86	295 x 206 x 86	356 x 206 x 99	356 x 206 x 99
Optional Accessories	Remote Digital Display / Enerdrive Part Number EN3REM
Regulatory Compliance	Complies with AS/NZS 60335.2.29 Including Australian deviations.

Feature:

Introducing Enerdrives RV Installation Kits for 4WD Canopies, Caravans, Camper Trailers, Commercial Work Vehicles and more.

Enerdrive have created many different layouts to fit nearly every possible application. Designed for the DIY handyman with basic electrical knowledge through to the professional looking to save installation time. You can choose kits ranging from 20A AC & 40A DC chargers through to 40A AC & DC units with monitoring and Low Battery Cutout.

These kits are all pre-wired by Enerdrive where possible to keep the kits simple to install. All RV boards have a full wiring diagram showing each circuit and where to connect your loads, battery and inverter cabling. All items are mounted on a 12mm Black plastic (water & rot resistant) board for simple mounting into the application.

Enerdrive also have you covered from a service and support angle with the RV Installation kits. Designed, constructed and pre-wired by Enerdrive, we know exactly the layout and wiring of your kit so any fault finding or support can be given quickly and concisely.

Contact your local Enerdrive dealer for supply and pricing.
